Space Arrangements

Configuring & Managing Space Arrangements: Event Layouts, Global vs. Specific Assignment, and Status Controls

Parent Hub: ⚙️ EventKey Administration

Category: 🚪 Spaces (Meeting Rooms)

Target Roles: Event Sales Managers, Banquet Directors, Event Operations Managers, System Administrators

Last Updated:

Executive Overview

In EventKey, Space Arrangements (room layouts) define how meeting, banquet, and event spaces are physically configured to meet client specifications. These setup configurations standardize table, chair, audio-visual, and staging layouts for functions such as conferences, banquets, cocktail receptions, classroom sessions, and executive boardrooms. System administrators and event managers can define arrangements globally across all inventory or restrict them to specific meeting spaces, attach graphic layout diagrams, manage active/inactive visibility, and ensure setup instructions seamlessly populate into Sub-Event workflows, banquet operational schedules, and Banquet Event Orders (BEOs).

Configuration Guide: Creating a Space Arrangement

System Navigation Path

Home > Event Administration > Spaces > Space Arrangements > + Add New

Step

Action

Platform Guidance & Operational Details

  1. Access Space Arrangements

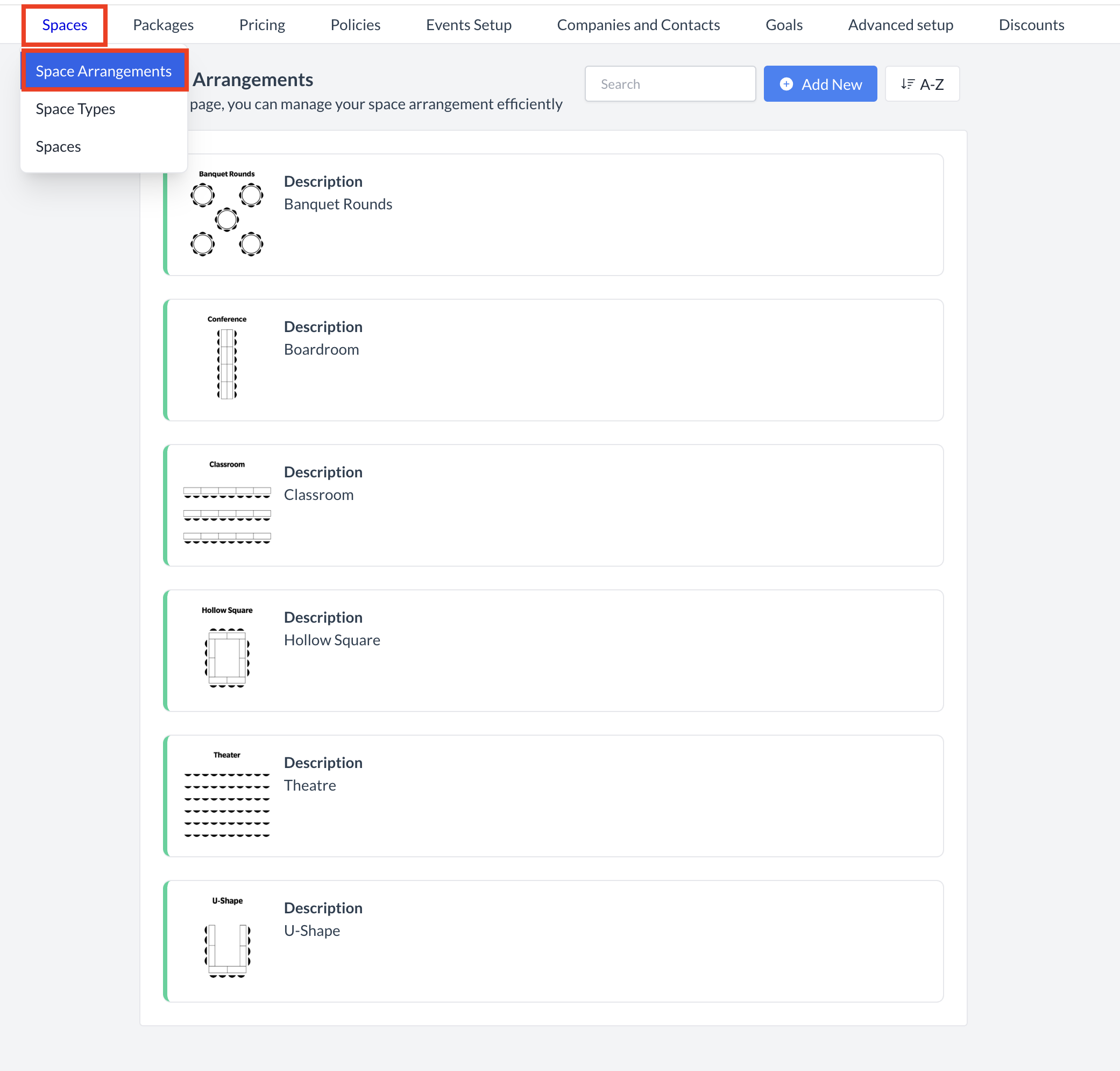

In EventKey Administration, hover over the Spaces tab in the main navigation bar and select Space Arrangements from the dropdown menu.

Opens the Space Arrangements directory displaying all configured room layouts, visual diagrams, and descriptions.

  1. Initiate Creation

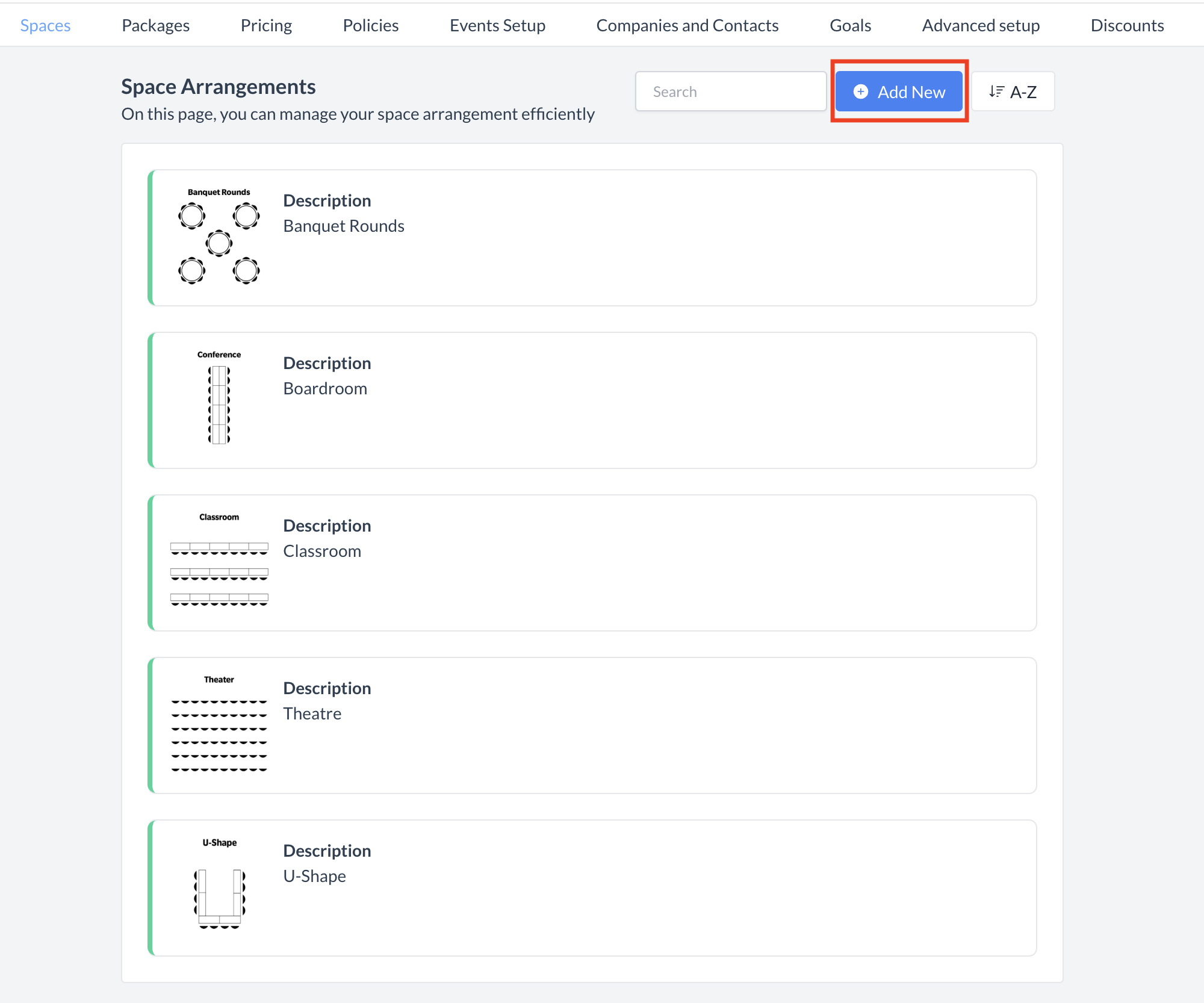

Click the blue + Add New button located in the upper-right corner next to the search and sort controls.

Opens the Add Space Arrangement configuration form with the Active toggle enabled by default.

  1. Enter Description

In the Description multi-line text area, enter the layout title and detailed setup specifications (e.g., Reception - Cocktail-Style: open-floor setup designed to encourage movement, networking, and social interaction. Instead of fixed rows or large dining rounds, the room features an open central area flanked by high-top tables.).

This description defines operational setup guidelines and populates into operational task sheets and BEO documentation.


  1. Select Space Arrangement Type

Click the Space Arrangement Type dropdown menu and choose either Global or Specific.

Global: Makes the layout available for selection across all event spaces property-wide.

Specific: Restricts the arrangement to designated meeting rooms or function halls.

  1. Upload Layout Diagram

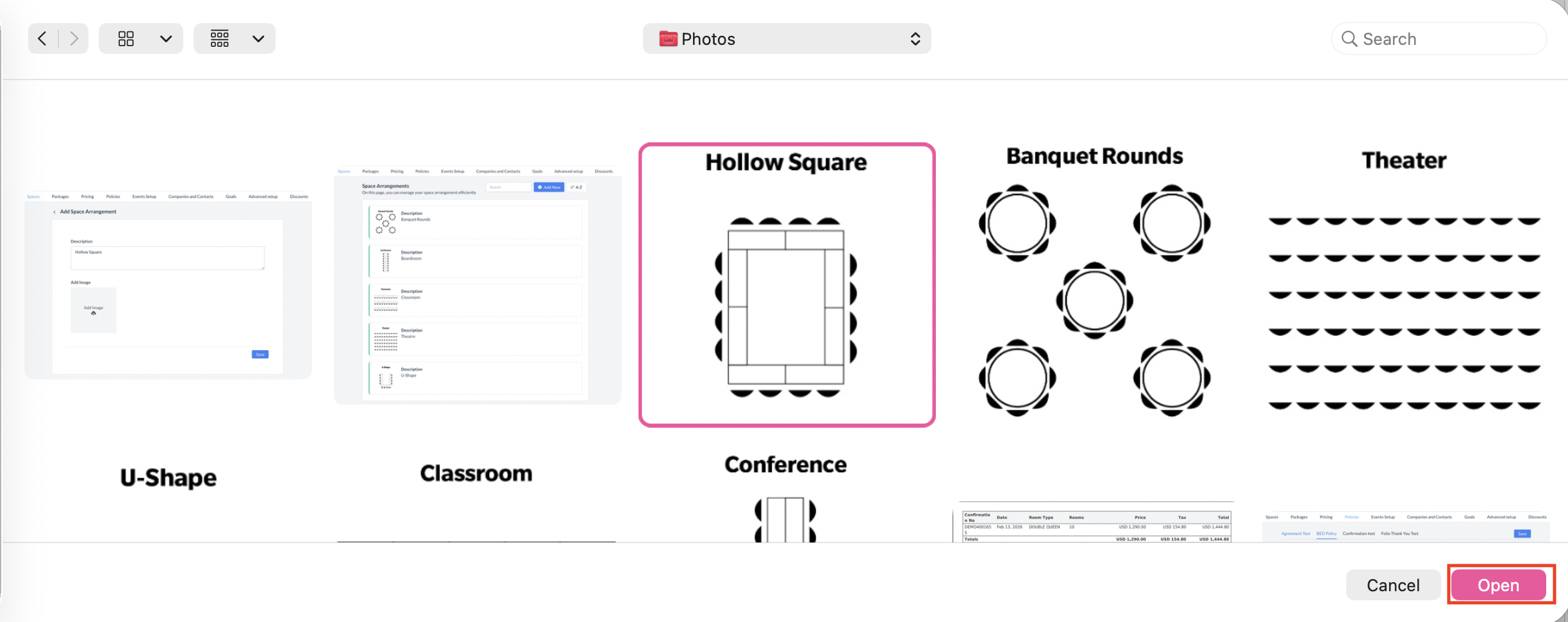

Click the Add Image upload card (with cloud icon). Browse your local drive and select the corresponding diagram file (e.g., reception-cocktail-style.png).

Uploads and renders a visual thumbnail diagram of the layout, assisting banquet teams and clients during event planning.


  1. Save & Deploy

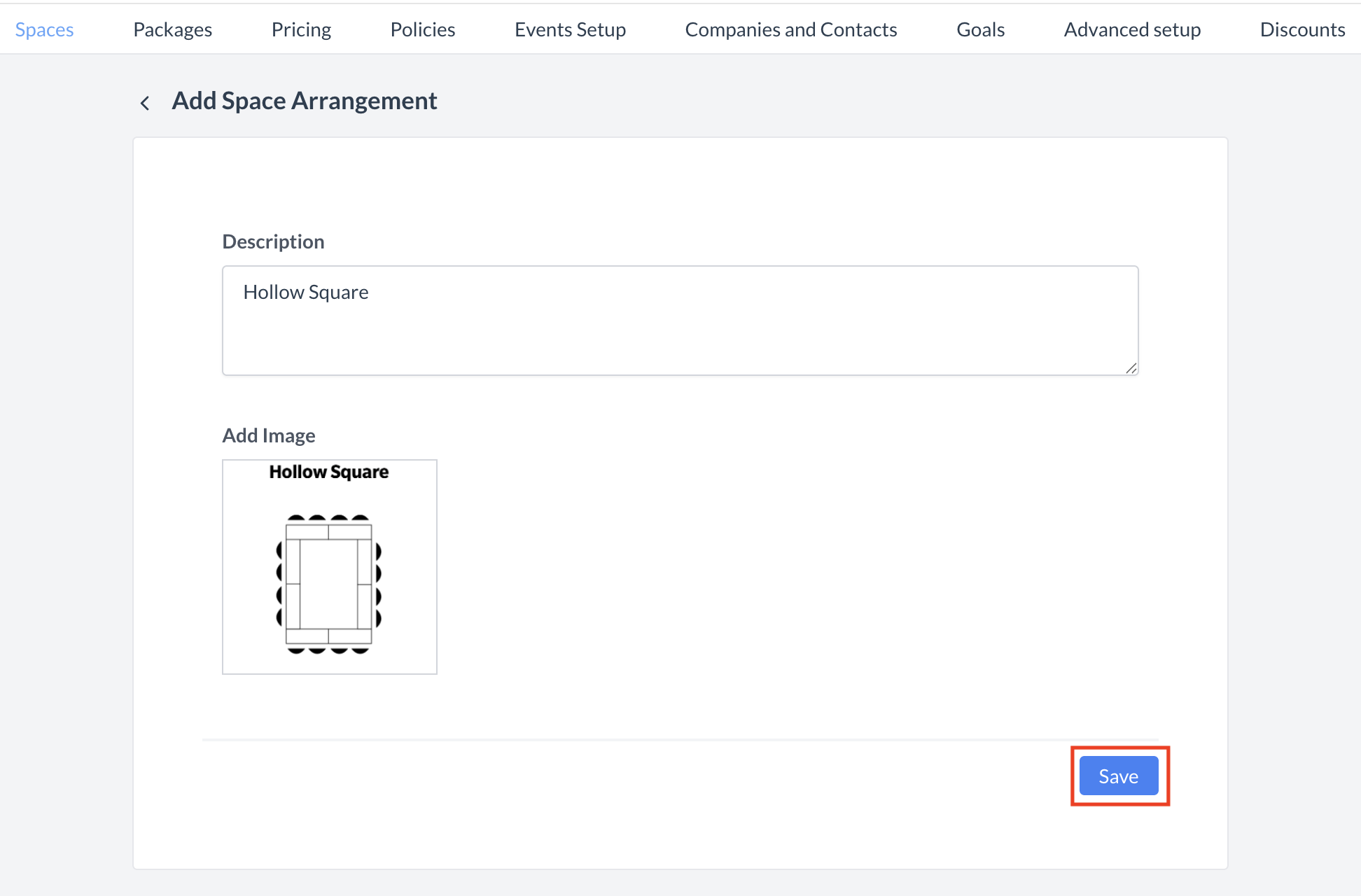

Click the blue Save button in the lower-right corner.


Validates inputs, displays a green notification banner (Success: Saved Successfully), and adds the arrangement to the active directory.

📷 VISUAL CALLOUT:

Creating a Space Arrangement Walkthrough

Creating a Space Arrangement Walkthrough

Managing Layout Availability: Inactivation & Reactivation

If a particular configuration is temporarily retired, seasonal, or under maintenance, administrators can adjust its active state without deleting historical event records.

Workflow

Step-by-Step Procedure

System Impact

Deactivating a Space Arrangement

  1. Navigate to Spaces > Space Arrangements.

  2. Click on the target layout card to enter edit mode.

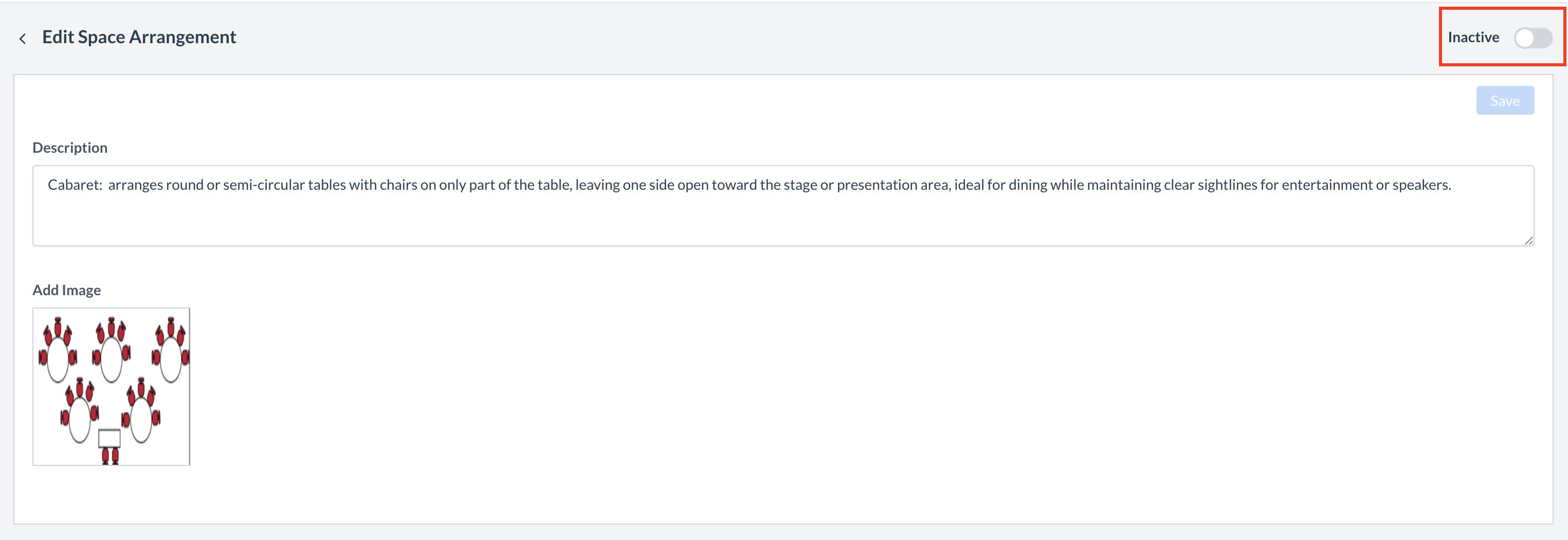

  3. In the top-right header, toggle the Active switch from ON to OFF.

The system automatically updates the status. The arrangement receives a grey indicator bar and is hidden from new Sub-Event bookings while preserving past event audit records.

Reactivating a Space Arrangement

  1. On the Space Arrangements screen, click the status filter dropdown and select Inactive (or All).

  2. Locate the inactive layout (marked with a grey sidebar) and click to open.

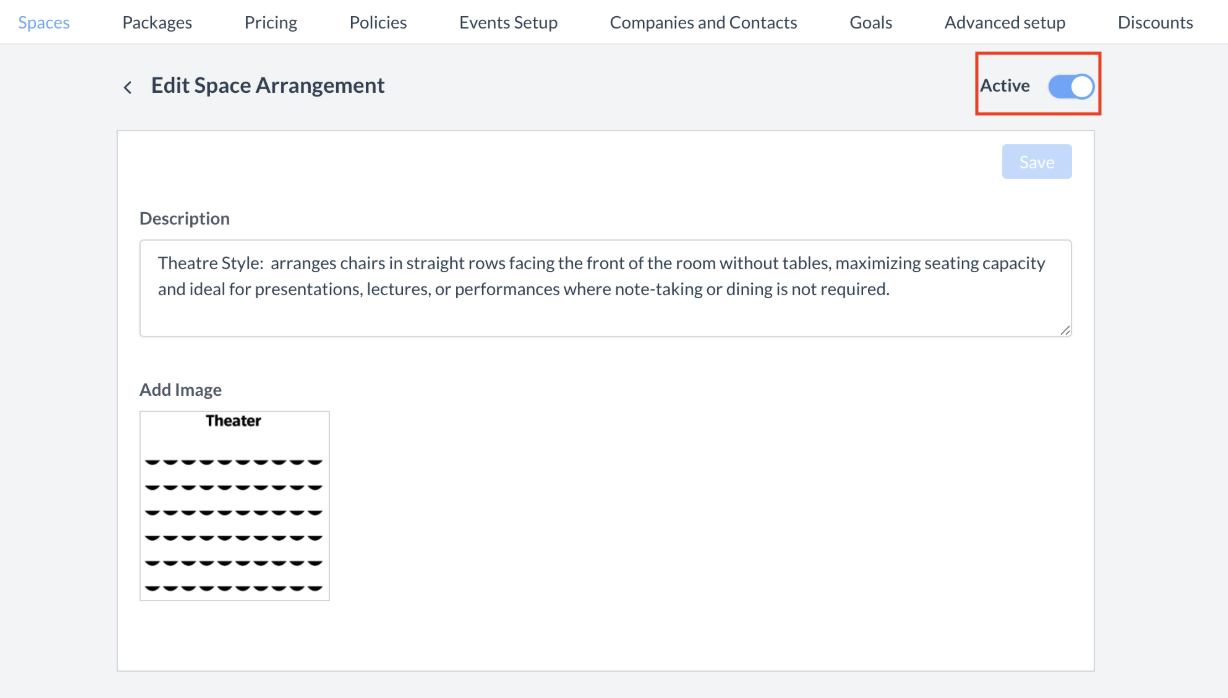

  3. Toggle the status switch to Active (ON).

Instantly restores the arrangement with a green indicator bar, re-enabling it in Sub-Event setup dropdowns.



📷 VISUAL CALLOUT:

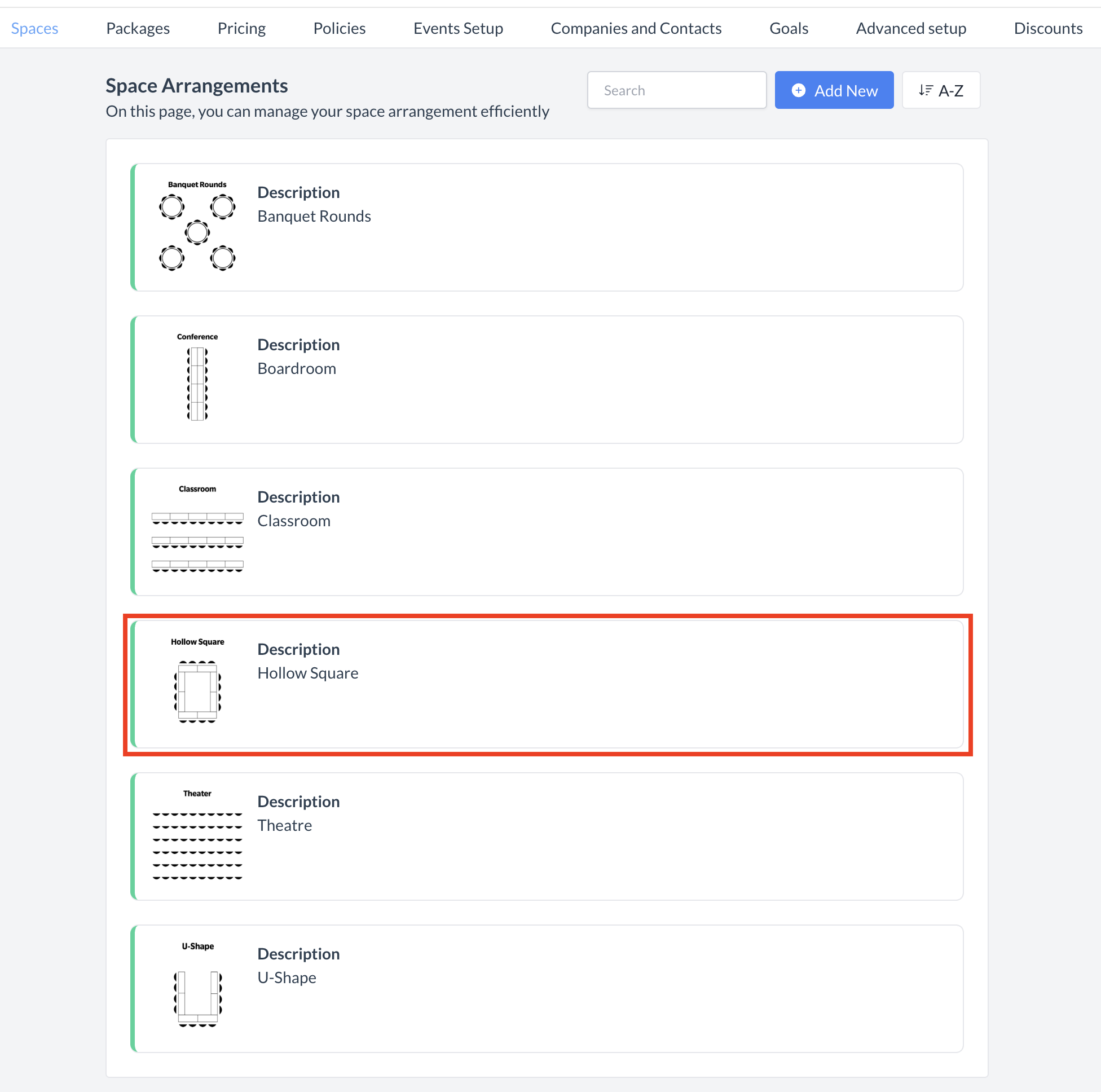

Active vs. Inactive Arrangement Indicators

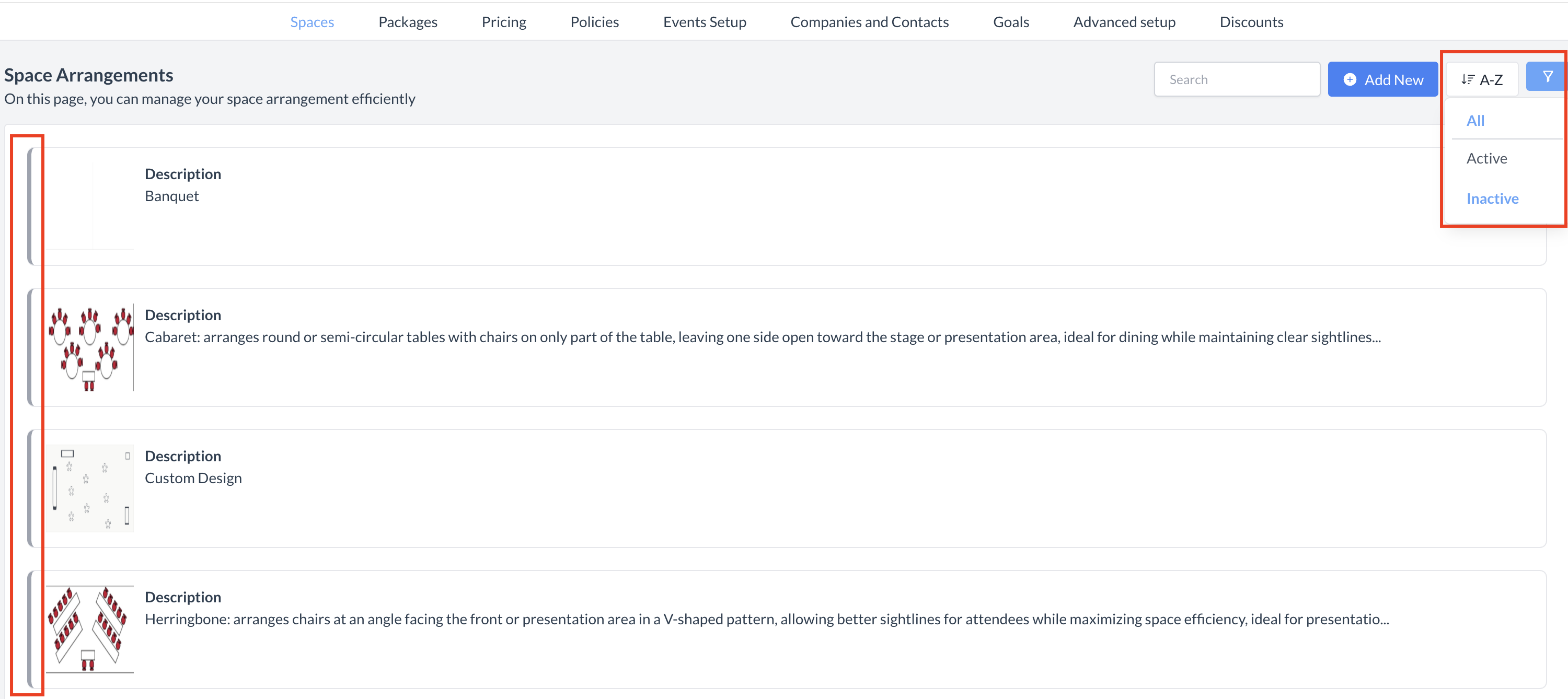

Listing screen comparing active layouts (marked with a green vertical border) against inactive layouts (marked with a grey vertical border).

Inactive vs. Active.png
Inactive vs. Active Layout Indicators

📷 VISUAL CALLOUT:

Deactivating an Arrangement Layout Walkthrough

Deactivating an Arrangement Layout Walkthrough

📷 VISUAL CALLOUT:

Activating an Arrangement Layout Walkthrough

Activating an Arrangement Layout Walkthrough

Detailed Screen & Field Breakdown

1. Add / Edit Space Arrangement Form Parameters

  • Active Status Toggle: Located in the top-right corner; toggles between active deployment and inactive archiving.

  • Description (Required):* Multi-line text field capturing the formal layout name and detailed physical arrangement instructions (e.g., table dimensions, chair spacing, perimeter clearance).

  • Space Arrangement Type Dropdown:

    • Global: Universal arrangement accessible across any meeting room, ballroom, or outdoor venue configured in the PMS.

    • Specific: Target-restricted setting that limits layout availability only to selected function spaces suited to that setup.

  • Add Image (Upload Box): Interactive file selector supporting image uploads (.png, .jpg, .jpeg). Displays real-time upload progress and renders an inline graphical preview of the room layout.

  • Save Button: Blue action button committing configuration changes and returning to the directory.

    HKB-Space Arrangements-081126-170846.pdf


📷 VISUAL CALLOUT:

Add Space Arrangement Configuration Screen

Form view displaying the Description text box populated with cocktail reception instructions, the Space Arrangement Type dropdown set to Global, the uploaded high-top table graphic in the Add Image card, and the blue Save button.

Image 11-8-26 at 11.38 AM.png
Space Arrangement Configuration Screen


2. Directory Search & Sorting Controls

  • Search Field: Real-time query box allowing quick lookup of space arrangements by name or keyword.

  • Sort Controls (A-Z / Z-A): Alphabetical sorting toggle to order arrangement cards ascending or descending.

  • Status Filter Dropdown: Filter menu allowing users to isolate Active, Inactive, or All space arrangements.

Downstream UI & Operational Integration

Once configured and activated, Space Arrangements populate across several key operational touchpoints in EventKey:

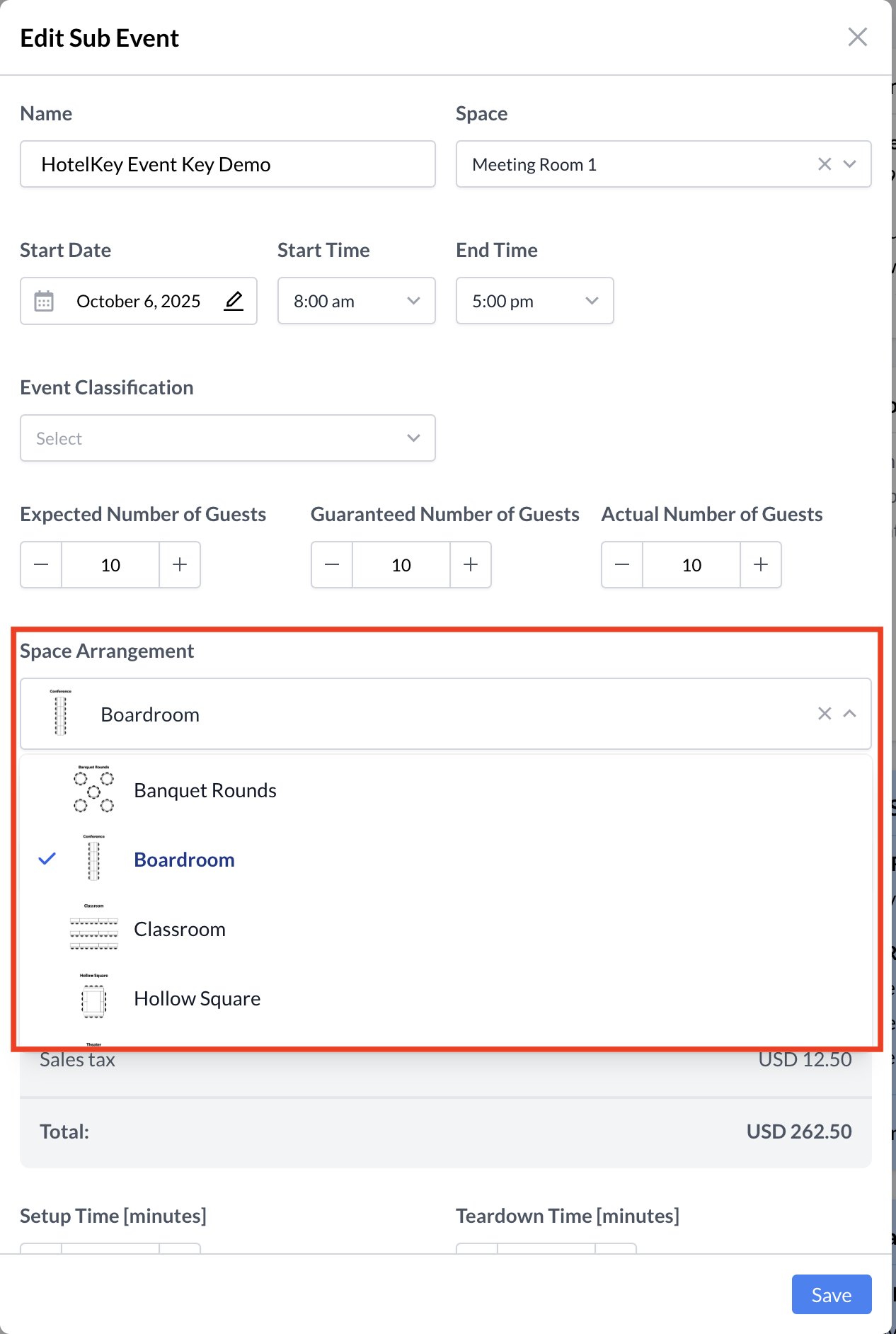

  • Sub-Event Configuration: When creating or modifying a sub-event within an event booking, the Space Arrangement dropdown displays all eligible layouts along with their visual icon diagrams for selection.

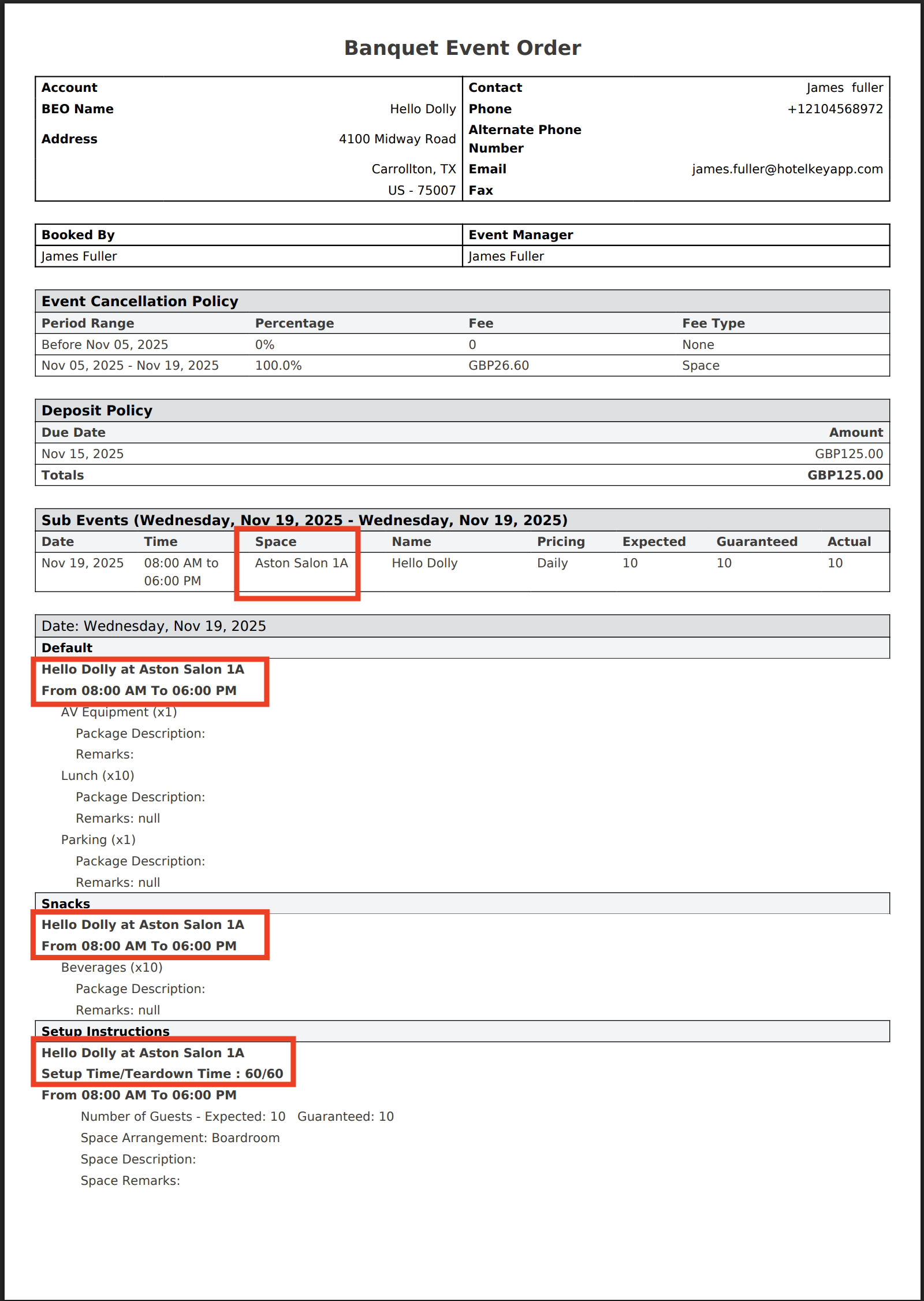

  • Banquet Event Orders (BEOs): The selected space arrangement, layout graphic, and setup/teardown timing parameters automatically print within the Setup Instructions section of the generated BEO.

  • Banquet & Operations Setup Sheets: Daily setup logs pull the arrangement description directly from this setup to guide housemen and banquet crews on table configurations, chair counts, and equipment positioning.
